Description
355.50Need reverse camera system with a heavy duty camera?
Look no further with the CM50H kit.
Quick Overview
- 5″ LCD
- Screen resolution: 800 x 480
- 12/24 Volt Control box included
- Heavy Duty camera included
- Can be wired up as reverse only or constant vision
- Heavy Duty camera rated IP68 and 10G force rating
- 10 metre cable with screw in style plug included
- Removable sunshade
- Comes with dash mount
- Suction mount available as an extra
- 2 camera inputs
Detailed Overview
No more backing into things with a Polaris reversing camera.
.
A Polaris reversing camera not only makes reversing a breeze but it ensures that you can see clearly behind your vehicle when reversing.
.
Believe it or not but 11% of accidents involve collision while reversing. Most of the time this is due to poor visibility and miscalculation (Budgetdirect.com.au, 2019). The more vehicles fitted with reversing cameras, the more chance that this figure will drop.
.
Not only that but a reverse camera could potentially save a life or prevent injury, especially on a work site.
What kind of vehicles will the CM50H reversing camera kit suit?
This kit is recommended for more heavy duty type vehicles such as trucks and machinery.
How big is the screen in the CM50H
The actual screen size is 5” and the monitor dimensions are: 14.2cm (W) x 9.8cm (H) x 2.5cm (D)
Sunshade depth: 5.5cm
How does the monitor mount?
The CM50H Reversing camera kit comes with a dash mounting bracket. There is no drilling required to mount the monitor, it simply adheres with 3m double sided tape. We also sell an optional suction bracket if you prefer to stick it to your windscreen.
.

.
.
How many inputs does the CM50H have?
The CM50 reversing camera system has 2 camera inputs. It is possible to have 3 or 4 cameras when paired with suitable control boxes.
How much cable does this kit come with?
The CM50H reversing camera kit comes with 10 metres of cable
What type of camera comes with the CM50H reversing camera kit?
The CM50H kit comes with a Heavy Duty Camera
Where do you normally mount the monitor?
We will normally fit this monitor somewhere on the dash pointing towards the driver.
Can this monitor run all the time, not just in reverse?
Yes this is an option if you require. Just make sure whoever is installing it wires the power wires up to accessories power.
Can this monitor come on only when in reverse?
Yes, a reverse trigger wire is available in the control box wiring.
Can I see this monitor in the sun?
The 5″ heavy duty reversing camera kit has a sunshade built into the screen to limit the amount of glare that will obstruct the visibility of the screen. In saying this, there will be different times of the day that might affect the visibility of the screen that cannot be avoided. However, there are some visual settings such as, brightness, colour and contrast that can be adjusted to suit different lighting conditions.
Is this system 12 or 24 volt?
The CM50H reversing camera will suit both 12 and 24 volt.
Can I install this system myself?
The system itself is not very complicated. Its just a matter of knowing where to run the cables, pulling your dash apart and finding power. If you feel like this is something you would be confident in, then yes you could install itself. If not, please give us a call on 1300 555 514 and we can recommend an installer for you.
Does Polaris install?
Yes we certainly do, please give us a call on 1300 555 514 to get a quote or arrange a booking time.
How much does Polaris charge for installation?
This would have to be a Price on Application as trucks can differ greatly.
How much warranty comes with this kit?
You have 2 years warranty so you can be rest assured that you have chosen a product with the support to back it.
Do you really test all your products before they are dispatched?
Yes 100%. Even though we are a small team, we want to make sure that you get a working product at your doorstep.
Do you have a Zipmoney option?
We sure do. For more information on how zipmoney works please visit www.zipmoney.com.au
Do you offer Fleet Pricing?
Yes we certainly do, please call us on 1300 555 514 if you need a price for a fleet of vehicles.
Citations:
www.budgetdirect.com.au. (2019). Car Accident Statistics. [online] Available at: https://www.budgetdirect.com.au/car-insurance/research/car-accident-statistics.html [Accessed 8 October. 2019].
Optional Extras
Suction Bracket

Extension Cables
I want a dash mount but i think 5″ is a little too small for me, do you have any larger monitors?
Yes we have a 7″ heavy Duty reverse camera kit available
I don’t want anything on my dash, what are my other options?
No worries at all, if you don’t want anything on your dash, you might want to look at our other options:

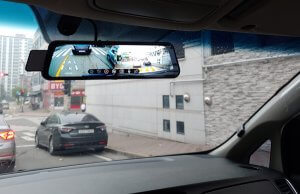

Mirror mount reverse camera kits:


.

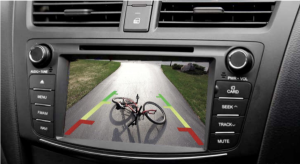

In Dash options

.
Camera Integration kits

.
In The Box
- 5” monitor
- 12/24 Volt control box
- Heavy Duty Camera
- Remote Control
- Dash Mount
