Description

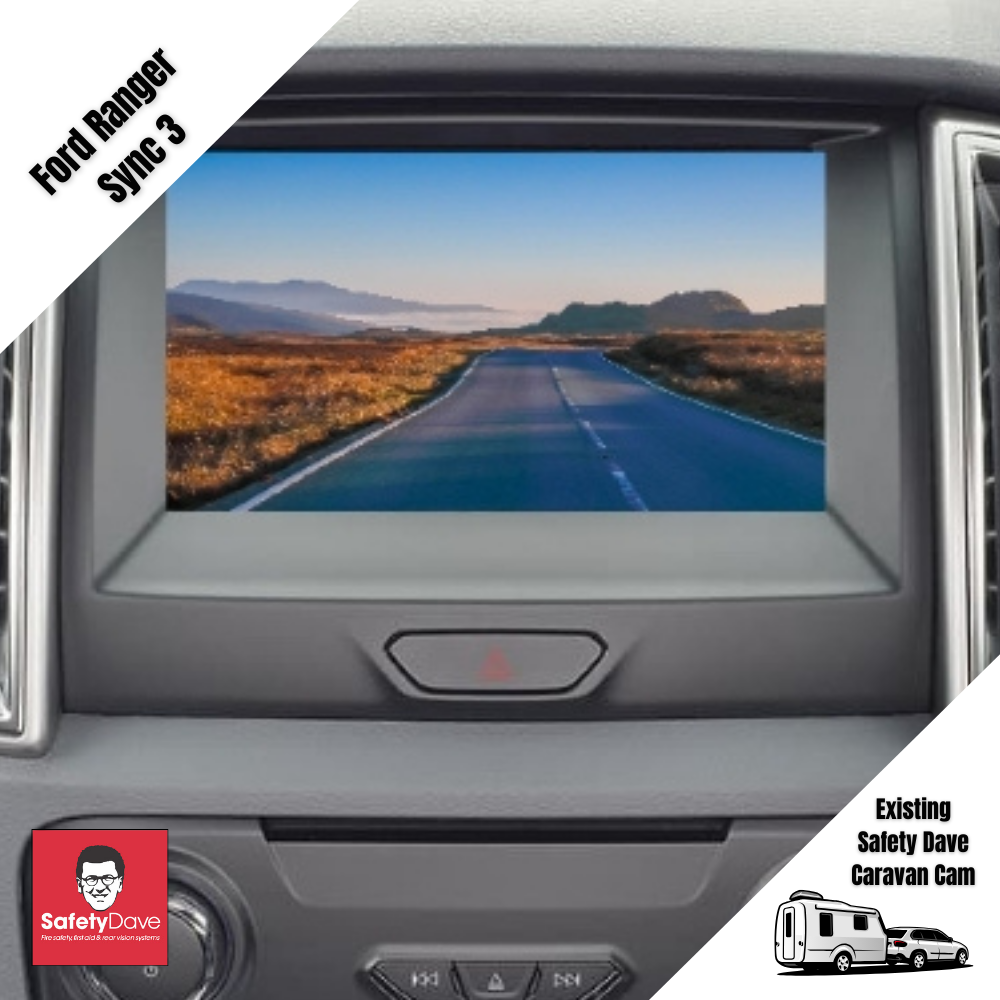

- Add your Safety Dave caravan camera and view it on your factory Sync3 Ford Ranger / Everest
- Factory reverse camera works as normal
- No switches required, activate caravan camera anytime by holding down one of your steering wheel controls.
- Plug_n_Play
Vehicles known to work with this product:
- Ford Ranger September 2016 – 2022 (Sync 3 screens)
- Ford Everest September 2016 – 2022 (Sync 3 screens)
Important:
* Not compatible with Sync 3 screens that have no factory reverse camera
* Not compatible with Sync 2 screens
* Not compatible with Next Gen Sync 4 screens (Available now)
Utilise Your Safety Dave Caravan Camera with Your Factory Screen

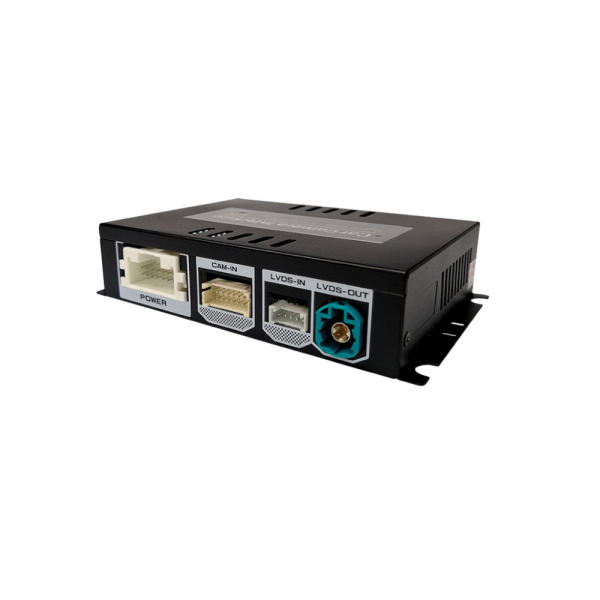

If you want to integrate your existing Safety Dave caravan camera with your factory screen, we’ve got you covered! This kit includes the integration module as standard, but you may need additional items depending on what’s already installed on your caravan.
Step 1: Check Your Camera Type
- AHD or CVBS Format?
- AHD Camera (January 2023 or later): You’ll need an AHD to CVBS converter ($120).
- CVBS Camera (Before January 2023): No converter is needed.
Step 2: Do You Already Have a Car Kit?
- If you already have a Safety Dave monitor or car kit, you only need the Male Safety Dave to Polaris Adaptor ($15) to connect to our integration module.
Step 3: Check Your Drawbar Plug
Look at the plug on your caravan’s drawbar to determine what else you need:
- Chrome 5-Pin Socket: (See Figure A):
- Purchase the following items from Safety Dave:
- Add the Male Safety Dave to Polaris Adaptor ($15) to connect everything to our module.
- 4-Pin Aviation Plug (See Figure B):
You have two options:- Option 1: Use a standard setup:
- Add a 7-metre extension cable ($20) and the Male Safety Dave to Polaris Adaptor ($15).
- Option 2: Use a WOZA kit for a curly cord setup:
- Add the WOZA Kit with Safety Dave Adaptor ($145) and a 7-metre extension cable ($15).
- Option 1: Use a standard setup:
Figure A
Installation Instructions
