70 Maxx

$895.00

Polaris 9″ android head unit to suit 20102023 76/78/79 series landcruiser

SKU: 70Maxx Categories: , ,

Description

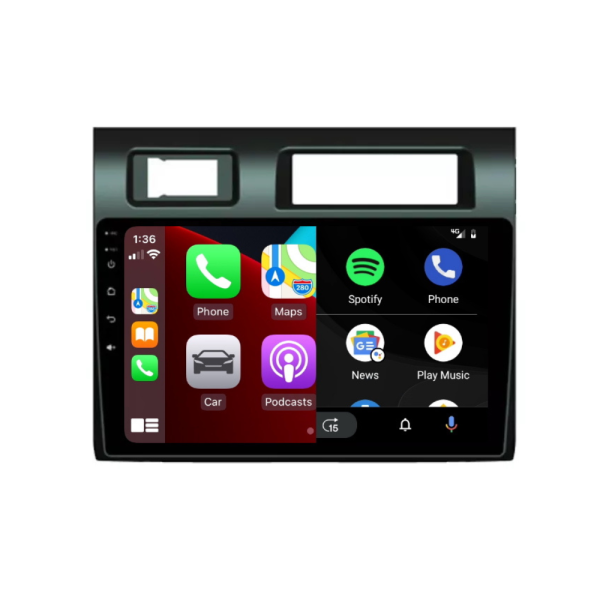

The Polaris 70 Maxx is a top-of-the-line head unit designed specifically for 76,78 & 79 Series Landcruiser’s. It features seamless integration with the vehicle, providing a factory-fitted look and feel. The unit is equipped with the latest in-car technology, including wireless Apple CarPlay and Android Auto compatibility, allowing you to access some of your phone’s apps, maps, music, and more directly from the head unit’s large touchscreen display.

In addition to wireless connectivity, the Polaris 70 Maxx also comes with a reverse camera, providing clear, real-time footage of what’s behind you. This makes backing up and manoeuvring in tight spaces much easier and safer.

The head unit also includes the ability to download apps directly to the unit, providing even more functionality and customisation.

Additional add-ons include an OBD reader, allowing you to monitor your vehicle’s performance and diagnose any issues. And for added security and peace of mind, you can also add a dash camera, recording your trips and providing video evidence in case of an accident.

Overall, the Polaris 70 Maxx is a comprehensive upgrade for your 79 Series Landcruiser, delivering a range of cutting-edge features that enhance your driving experience.

  • 9″ sleek Single Din head unit designed to fit perfectly in 2010 > 70 Series (76,78,79) Toyota Landcruiser
  • Wiring harness included
  • Wireless Carplay / Wired Android Auto
  • Bluetooth
  • Reverse Camera included
  • AM/FM radio
  • 2 x USB inputs
  • Built-in WiFi
  • Download additional apps via play the store
  • Second camera input
  • Android 10 operating system
  • Screen resolution: 1024×600
  • Loads of optional extras!

Compatible vehicles:

  • 2010 > Toyota Landcruiser 70 series (76,78,79)



Additional information

Weight 2.6 kg
Android OS

10

Resolution

1024×600

Screen

Hanstar screen

Screen style

Sits flush with the fascia

Power Supply

12 Volt DC

CPU

64 Bit, Cortex-A53, Octa Core

Rockchip

PX5

Flash

32GB

RAM

4GB

GPS Freq

16GHz

Bluetooth

WQ_RF210

Amplifier IC

TDA 7851

Video Form

NTSC, PAL

Wiring

Vehicle specific harness

Steering wheel controls

Supports

Multi camera support

2 camera input, Can upgrade to 3+ cameras with control box

Video Decoder

1080P HW

Monitor

9" capacitive multi touch screen

GPS Module

SIRF III

Audio Max Power

Built in 4×50 with internal amplifier

AUX audio Input

Yes L & R

Aux audio output

RL out, FL out, RR out, FR out

EQ

10 band equaliser

Subwoofer out

Yes

Sound effects

Pop, classical, rock, flat, jazz, custom, voice

Carplay / Android Auto

Compatible, Wired connection, Wireless connection

Supports iPhone

For Carplay, For charging

Supports Android phone

For Android Auto, For charging

Supports Ipod

No

Retains factory camera

No

Reverse camera functionality

Camera will appear on screen when reverse is engaged. Can also view reverse camera via CAM app on head unit (provided that it is wired up correctly)

Reverse camera included

Yes

Reverse camera input

Yellow RCA jack

Reverse trigger

Yes

Bluetooth functionality

Compatible with BT2.0 for most brand phones, External microphone included, Import phone book, Stream audio via bluetooth

AM

522KHz-1620KHz, Can set up to 30 presets

FM

76.0 MHz-108.0 MHz, Can set up to 30 presets

Front camera included

No

Front camera functionality

Can also switch over to the camera when in reverse by pressing the return button on screen, Can be accessed via CAM app, Can be used as a second camera input (e.g., Caravan camera)

Front camera input

Yellow RCA jack

Street Mapping

Navigation can be used through Carplay / Android Auto, Other mapping apps can be installed onto head unit (may require internet connectivity)

Off Road Mapping

Download your favourite off-road navigation from the Google Play store

USB

2 cabled USBs, Support up to 64GB

File formats

MP3/WMA/AAC/RM/FLAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG

DIN size

Single DIN

Frequently Asked Questions

The 70Maxx is designed to fit the following models:

  • 2010 – 2022 79 Series Toyota Landcruiser
  • 2010 – 2022 78 Series Toyota Landcruiser
  • 2010 – 2022 76 Series Toyota Landcruiser

  • 70Maxx in dash unit
  • Reverse camera
  • wiring harness
  • GPS external Antenna
  • Bluetooth External Microphone
  • Reverse cam / Front Cam in plug
  • RR,RL,FR,FL Audio Out / Vid out 1& 2 / SUB
  • Vid In / AUX L / AUX R

The 70 Maxx comes with a Toyota specific harness which is mostly plug and play. You will need to pick up a reverse trigger for the camera and you will have to program in your steering wheel controls. Check out our installation manual for more information.

2 years.

The 70Maxx is equipped with standard wireless Apple Carplay and wired Android Auto, allowing you to easily use your phone’s navigation through the in-dash display

You can also download other mapping apps onto the head unit (may require internet connectivity).

iPhone users can use navigation apps such as Apple maps, Google, Waze etc.

Android users can use navigation apps such as Google maps, Waze etc.

Apple CarPlay lets you use a selection of your Iphone’s functions directly through your car’s built-in infotainment system.  Apple CarPlay is often more user-friendly and faster to respond than the standard features built into many infotainment systems

Android Auto brings a selection of apps to your car display so you can focus while you drive. You can control features like navigation, maps, calls, text messages, and music.

With the 70Maxx, you continue to use your phone, but the interface is optimized for the in-dash display, providing a seamless navigation experience.

Apple Carplay and Android Auto prioritise safety and as such, not every app on your phone will be accessible in Carplay or Android Auto mode. Only apps that meet Apple’s approval will be available in Carplay, and similarly, only those that meet Google’s standards will be available in Android Auto.

The beauty of owning an Android Head unit is you can add YOUR favourite navigation app via Google Play store.

Options like:

  • HEMA 4×4 app
  • ExploreOz Traveller
  • Memory Maps
  • Gaia GPS
  • Newtracs
  • Australia Topo maps
  • Sygic Maps

Alternatively, if you are looking for a custom off-road package, please visit www.gpsoz.com.au

Yes, we have worked with the developers to ensure that their app works with our head unit.

Exploreoz Traveller is a great mapping system for both on & off road with good reviews and might be worth checking out if you want a mapping system that provides the best of both worlds.

Please note that there are a few settings that need to be changed which we can advise at the time of purchase.

Yes you can pair your phone via bluetooth and:

  • Make / receive hand free phone calls
  • Import contacts
  • Stream audio via bluetooth

Yes, it has wired/wireless Carplay built in, so your iPhone will work with the Carplay interface.

Yes, please choose which camera you would like before adding it to cart

Yes the 70Maxx has a second camera input which can be used for a front camera or a caravan camera.

Yes, we have control boxes available that will allow you to add more cameras. Contact us at sales@polarisgps.com.au to get advice on the best setup for your application.

We have a dedicated kit for adding a caravan camera for an extra $295.00 which includes:

  • RCA Adaptor
  • 7 metre extension cable
  • WOZA caravan/Trailer cable kit
  • Caravan Camera

Simply select the kit at the top of the page to add it to your cart.

Yes, there is  dedicated Camera app on the head unit that allows you to view the additional camera at any time.

Yes the unit comes with analogue AM/FM Radio

Please note that it is not digital radio (DAB+), however you can download many different compatible radio apps on the head unit and stream radio*

*Requires internet connectivity

No

No

Yes it has 2 cabled USBs that are normally placed in your glove box for easy access.

Yes, you can use a portable Wifi device or your phones personal hotspot to connect up to Wifi.

No

No

Yes, you can download compatible apps from the Google Play Store or install APK files. However, it’s important to note that not all apps may be compatible with the head unit. While support for third-party apps is provided, some may not function properly.

You can find the specifications in the additional information tab.

Yes we have an add-on OBD Reader ($50.00)

Yes we have an add on dash camera ($75.00)

While installation of the 70Maxx is possible, it requires specialized technical skills and expertise. If you lack the necessary confidence or skill to install the product, it’s recommended to contact Polaris at 1300 555 514 or locate a certified dealer from the provided list.

Yes please check the support tab for installation instructions
