Universal LUXX

Model No. UniversalLuxx

Universal LUXX

Model No. UniversalLuxx

$795.00
+ postage and handling

Clear
SKU: N/A
Ships in 1-2 business days See delivery information
Have a question about this product? Ask our tech team.

Submit your question
Categories: , , , Tags: , ,




    Quick Overview

    • 7″ sleek double din head unit
    • Navigate your way – choose either a Carplay dongle, Tom Tom street maps or HEMA off Road maps at the time of purchase.
    • Bluetooth
    • Reverse Camera included
    • AM/FM radio
    • CD/DVD player
    • 2 x USB inputs
    • Built in WiFi
    • Download additional apps via play store
    • Second camera input


    Detailed Overview

    General Information

    • Android 9.0 operating system
    • 7 inch capacitive screen
    • Screen resolution: 800×480
    • Steering wheel control programming (canbus vehicles require extra modules)
    • Extra wiring harnesses available for different vehicles
    • Extra fascias available for different vehicles

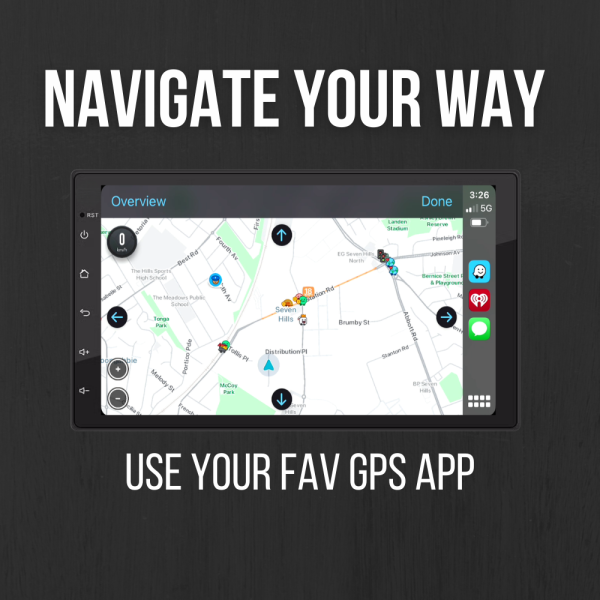

    Choose which way you want to navigate

    Choose from our 3 navigation options:

    • Tom Tom Street Navigation
    • HEMA Off road Navigation

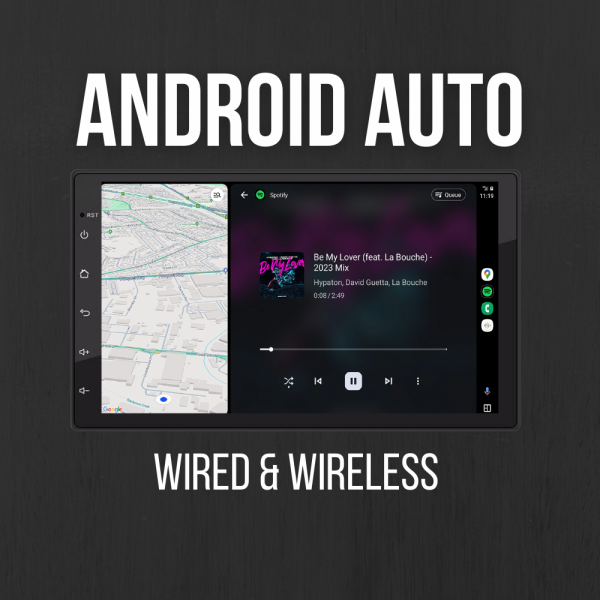

    • Carplay / Android Auto

    One of the above GPS options is included in the price. The unit can handle all 3 options, simply see the optional extras further down below and add the extra mapping product to your cart.

    Click below for more information and features of each mapping option:

    It comes with bluetooth.

    • hand free phone calls
    • Import contacts
    • Stream audio via bluetooth
    • Auto connection

    .

    It comes standard with a Reverse Camera.

    The Universal Luxx comes standard with a reverse camera. if you already have a factory camera on your vehicle, we will try our best to blend your camera into our system and you can keep our camera as a spare or you can swap it for a front camera at no extra charge.

    When purchasing online, use the drop down menu for cameras to choose which camera you want the unit to come with.

    Options include:

    Analogue Radio

    • AM / FM band
    • Set up to 30 FM preset channels
    • Set up to 30 AM preset channels
    • Great quality radio reception

    CD/DVD player

    • Compatible discs include: DVD/DIVX/MP4/MP3/MP2/VCD
    • Still listen to all the classics on CD
    • Watch DVD’s while stationary

    USB Input

    • 2 x USB inputs
    • Supports up to 64GB
    • Compatible File formats: MP3/WMA/AAC/RM/LFAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG

    Built in WiFi

    Use your personal hot-spot or use a portable WiFi device to connect to wifi while out on the road

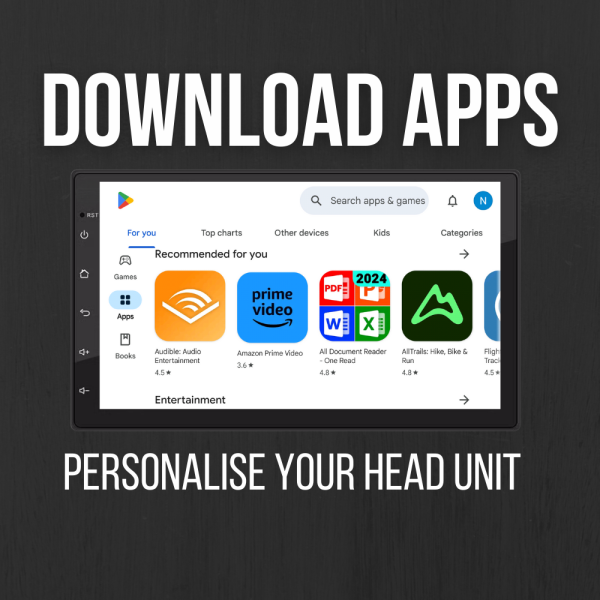

    Download additional apps

    Download all your favourite apps from Google play store onto the Polaris Universal Luxx

    Second Camera Input

    Second camera input ready to go to add an extra camera like a front camera or a caravan camera.

    It has a 2 year warranty

    You can ensure that you have purchased the right product with Polaris because if anything goes wrong, you are covered with a 2 year warranty.

    Want to fit this unit yourself?

    If you know a thing or two about installing aftermarket accessories then it shouldn’t be a problem but just in case you are unsure, download our installation manual here


    Optional Extras




    Picture Gallery


    In The Box

    • Universal Luxx in dash unit
    • Navigation depending on which mapping option you choose
    • Universal ISO Wiring Harness
    • GPS external Antenna
    • Bluetooth External Microphone
    • 2 x USB Cables
    • Cam in / Front Cam in plug
    • Reverse camera depending on which camera you choose
    • RR,RL,FR,FL Audio Out / Vid out 1& 2 / SUB
    • Vid In / AUX L / AUX R

    General Information
    Monitor: 7.0” Capacitive Multi Touch Screen
    Resolution: 800 x 480
    Operating system: Android 9.0
    Power supply: DC12V
    Video form: PAL/NTSC
    SWC: Steering wheel controls need to be hardwired and programmed in*
    OSD Language: English
    Wiring: Universal ISO harness
    Warranty: 2 years
    Multi Camera support: 2 camera input. Can upgrade to control boxes for 3+ cameras.
    NOTES: *Extra modules may be needed if the vehicle is Canbus
    Technical
    CPU: Rockchip PX5, Cortex-A53, Octa Core
    RAM: Samsung DDR3 2GB
    Flash: 16GB
    Radio: NXP 6686
    GPS module: SIRF III
    TFT Drive IC: Rockchip PX5
    Motor Drive: Mabuchi
    Amplifier IC: TDA 7851
    Bluetooth IVT
    Video Decoder: 1080P HW
    DVR: USB Camera
    Screen: Hanstar screen
    GPS frequency: 1.5GHz
    GPS Navigation:
    Google Maps: APP comes pre-installed on device. Internet connectivity Required
    Street Navigation:* Australia Wide TomTom Navigation with iGo Software platform loaded onto an SD card
    Off Road Navigation:* HEMA maps with OziExplorer platform loaded onto an SD card
    GPS Dual Zone: Yes, can listen to music whilst in navigation
    GPS Language: Multi-languages
    NOTES: * Choice of Street maps, Off Road maps or a CarPlay dongle at the time of purchase.
    Radio Function
    AM Frequency Range: 522KHz – 1620KHz
    FM Frequency Range: 76.0 MHz – 108.0 MHz
    FM Pre-set channels: Set up to 19 FM pre-sets
    AM Pre-set channels: Set up to 12 AM pre-set channels
    USB
    USB Flash Drive Supports up to 64GB
    USB Inputs: 2 x USB inputs.
    Supports iPod/iPhone/iPad: For Charging only
    File Formats Supported: MP3/WMA/AAC/RM/LFAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG

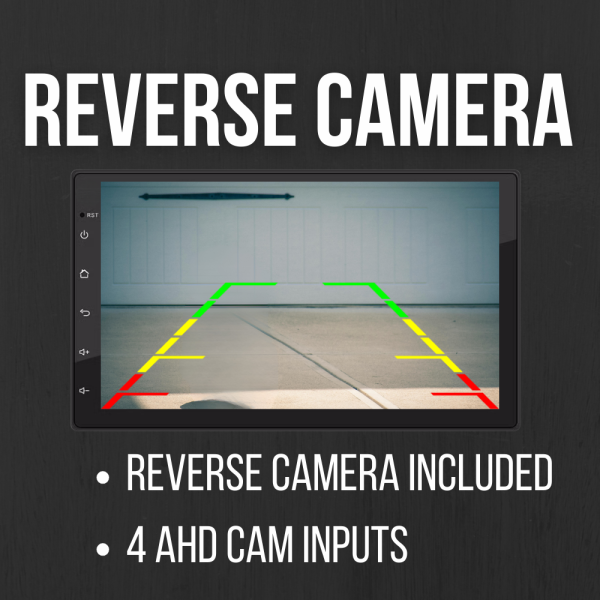

    Reverse Camera Function
    Reverse Camera input: Yellow RCA jack
    Reversing Camera: Reverse camera comes standard with Universal Luxx
    Reverse Trigger: Reverse Camera will engage when vehicle is put into reverse gear
    NOTES:
    Forward Vision Camera*
    Forward Vision Camera input Yellow RCA Jack
    Functionality: Once reverse gear is disengaged, the forward vision camera can be set to appear on the screen for a nominated time interval.  The forward vision camera can also be viewed at any time by selecting CAM icon in the main menu
    NOTES:  Optional Extra
    Caravan / Trailer camera*
    Input: Can work via the front Camera input (provided you are not using a front camera).
    Functionality Can be accessed any time via the CAM icon via the main menu. Can also access additional camera whilst in reverse by selecting        on the screen to switch camera views.
    NOTES: *Optional Extra

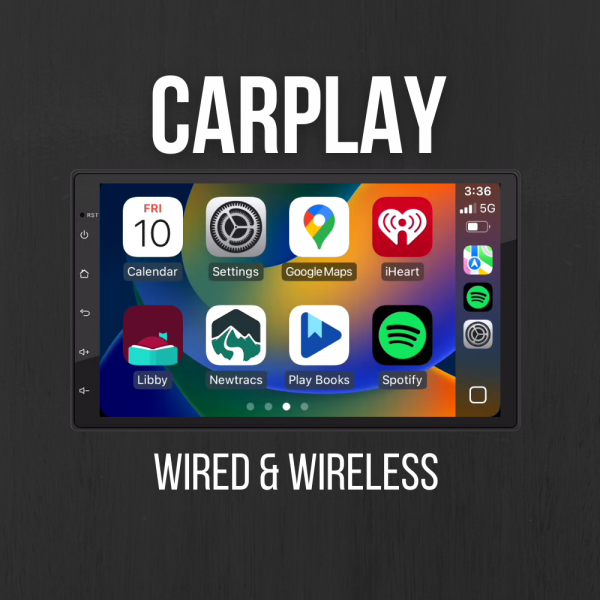

    Car Play / Android Auto*
    USB Dongle Car play / Android Auto USB dongle available.
    NOTES: *Choice of Street maps, Off Road maps or a CarPlay dongle at the time of purchase.
    Bluetooth Function
    Hands free: Yes, compatible with BT.2.0 for most brand phones
    Import Phonebook: Yes, with alphabetic search function
    Stream audio via Bluetooth: Yes
    Supports external microphone: Yes, included in the unit.
    Wi-Fi
    Power Supply: Vcc_3.3V
    Supported protocol/standard: IEEE802.11B/g/n compatible WLAN
    Interface type: USB 2.0
    Frequency: 2.4-2.484GHz
    RF Power: 15dBM
    Modulation: OFDM/DBPSK/DQPSK/CCK
    Audio Input & Output
    Max power: Built in 4x50w with internal amplifier

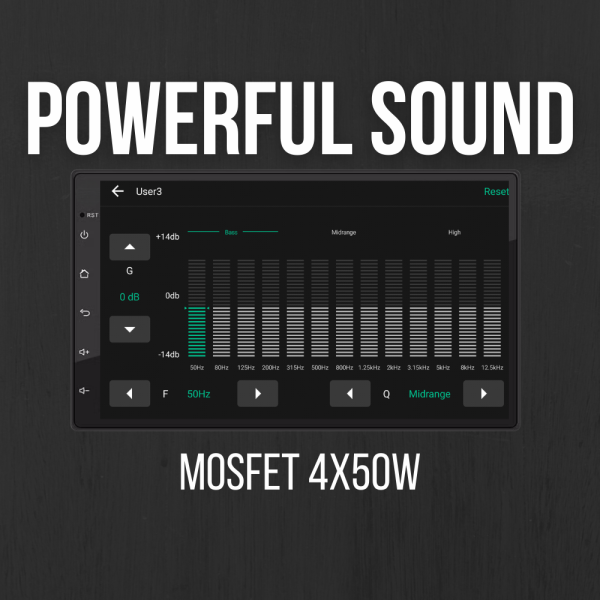

    EQ: 10 band equaliser
    Sound effects: Pop, classical, rock, flat, jazz, custom, voice
    AUX audio input: Yes – L & R
    AUX audio output: RL out, FL out, RR out, FR out
    Subwoofer output: Yes
    Test Voltage 13.8V
    Accessories Included:
    Universal Luxx Head Unit
    GPS External Antenna
    Bluetooth external microphone
    Factory wiring loom for plug-and-play
    RR,RL,FR,FL Audio out / VID out 1&2 / SUB
    Vid in/AUX L / AUX R
    Cam in / Front Cam in cable
    2 x USB cables with bluetooth mic input
    • 7.0″ Touch Screen
    • Android 9.0
    • Choice of Tom Tom GPS, HEMA off road GPS or Carplay USB dongle
    • CD/DVD Player
    • AM/FM Radio
    • Bluetooth
    • Reverse Camera
    • 2 x USB inputs
    • Built in WiFi
    • Google Play Store

    Description

    Upgrade your head unit to a Polaris Universal Luxx. The Universal Luxx is a standard double DIN head unit designed to fit into a wide variety of vehicles. Navigate your way and choose between powerful Tom Tom maps, Award winning HEMA Off Road maps or simply use your phone with our wireless Carplay adaptor. The Universal Luxx comes with a reverse camera so you can reverse with confidence.  The Universal Luxx has all your standard features built in including CD/DVD, Radio, Bluetooth, USB inputs. Connect to Wifi and Download all your favourite apps from the google play store. The Universal Luxx has 2 camera inputs so you can add a front camera or a caravan camera. The options really are endless with the Polaris Universal Luxx

    Features
    • 7” Touch Screen
    • Android 9.0
    • Choice of Tom Tom GPS, HEMA off road GPS or Carplay USB dongle
    • CD/DVD Player
    • AM/FM Radio
    • Bluetooth
    • Reverse Camera
    • 2 x USB inputs
    • Built in WiFi
    • Google Play Store
    Specifications
    • Android 9.0 operating system
    • 7″ inch capacitive screen
    • Screen resolution: 800 x 480
    • Power supply: 12V
    • Universal ISO harness included
    • Extra wiring harnesses available for different vehicles
    • Steering wheel control programming (canbus vehicles require extra modules)
    • Extra fascias available for different vehicles
    • 2 RCA style camera inputs
    • CPU: Rockchip PX5, Cortex-A53, Octa Core
    • Ram: Samsung DDR3 2GB
    • Flash: 16GB
    • GPS Module: SIRF III
    • Bluetooth: IVT
    • USB Input: Supports up to 64GB
    • USB Inputs: 2 x USB inputs
    • File formats supported: MP3/WMA/AAC/RM/LFAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG
    • DIN Size: Double DIN (177mm x 100mm)
    In The Box
    • Universal Luxx in dash unit
    • Navigation depending on which mapping option you choose
    • Universal ISO Harness
    • GPS external Antenna
    • Bluetooth External Microphone
    • 2 x USB Cables
    • Cam in / Front Cam in plug
    • Reverse camera depending on which camera you choose
    • RR,RL,FR,FL Audio Out / Vid out 1& 2 / SUB
    • Vid In / AUX L / AUX R



    Additional information

    Mapping

    Carplay/Android Auto USB dongle, HEMA Off Road Mapping, Tom Tom Street Mapping

    Camera

    120 degree large black infrared camera, 120 degree white round camera, 170 degree miniature camera, 170 degree number plate camera
