2009-2013 Toyota Prado (GX & GXL models only)

Does NOT suit VX, Kakadu or Altitude

• Wireless & wired Carplay
• Wireless & wired Android Auto
• Allows you to relocate your information screen
• Retains steering wheel controls
• Preloaded with Newtracs & Torque app
• Retains factory camera
• Cortex-A53 Processor
• Analogue AM/FM Radio
• Android OS
• Bluetooth
• 4 x AHD camera inputs
• WiFi
• 4G SIM compatible
• High Definition Screen 1280 x 800 QLED with MiraVision
• Over-the-air software updates
• Capacitive Touch screen
• RAM: 6GB
• Flash: 128GB
• High Quality MOSFET Amplifier
• 4 x 50 W/4 Ω Max.
• Modern, User Friendly Interface

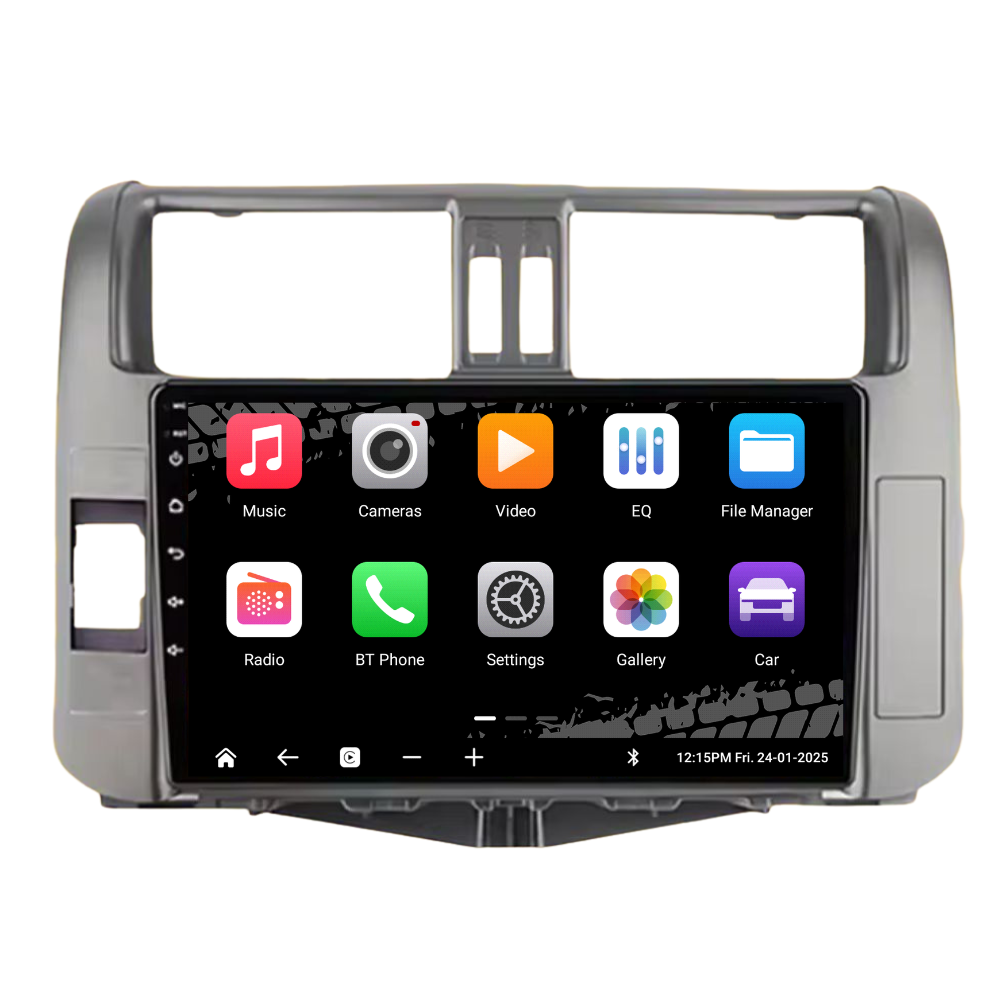

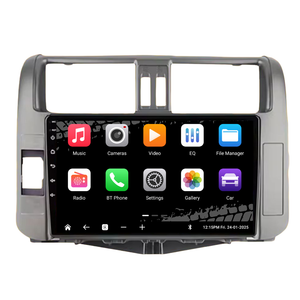

• Head Unit already mounted in it’s own vehicle specific fascia
• Wiring Harness
• Factory Camera Retention Harness

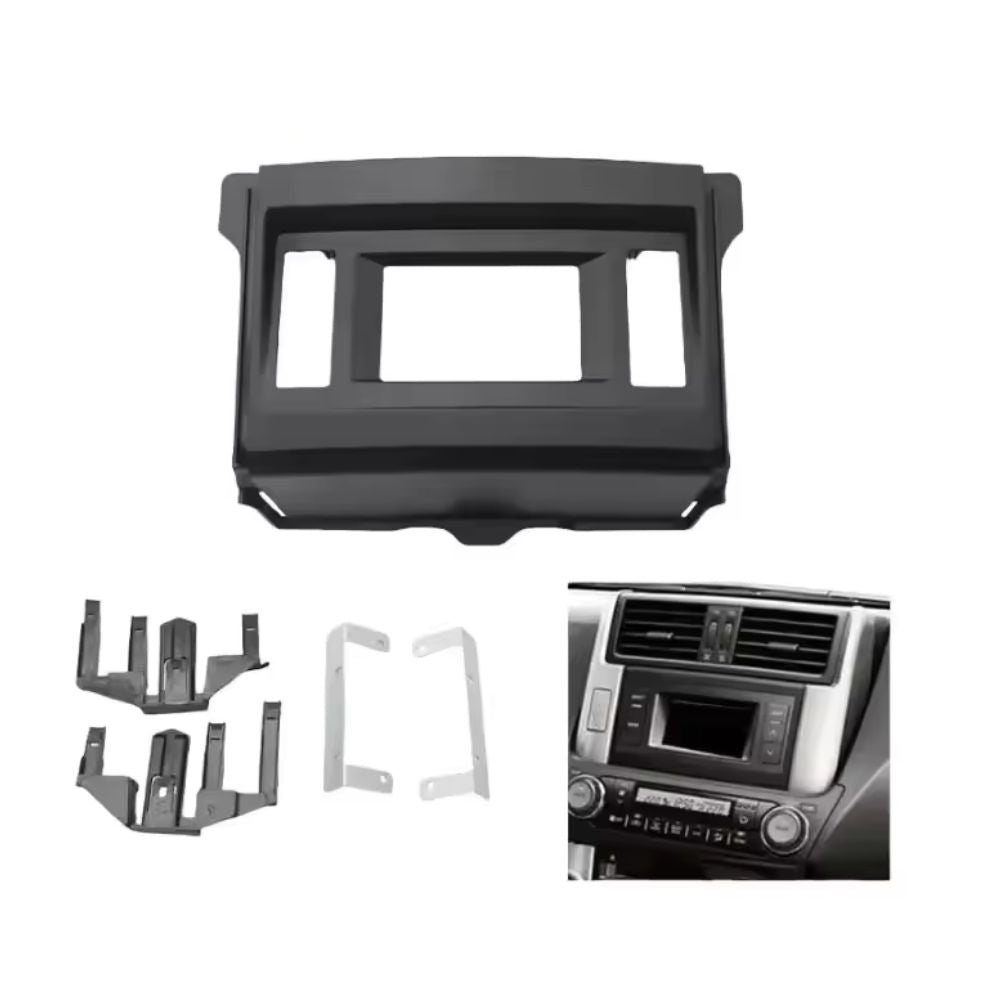

• Information Screen Relocation panel
• GPS External Antenna
• Bluetooth External Microphone
• Fly lead with Speaker Outputs
• Fly lead with 1 x USB A input
• Fly Lead with 1 x USB A Input
• Fly lead with 4 AHD Camera Inputs
• Fly lead with CVBS Front Cam input & CAN power
• Fly lead with CVBS Rear Camera input, bluetooth & Wifi Antenna
• Fly lead with SIM Card input
• 2 x SIM External Antenna’s

System Specifications

• CPU: Cortex-A53 4CPU + 4GPU, 2.0GHz
• RAM + ROM: 6GB + 128GB
• Operating System: Android
• PCB Layer: 8 layers with 2 ranks
• Video Formats: RMVB, MKV, MOV, WMV, AVI, MPG, TS (1080P H.264)
• Audio Formats: MP3, WMA, WAV, OGG, FLAC, APE
• Steering Wheel Control: Supports (if applicable)
• Power Off: Shut off OS, <10mA
• Working Voltage: DC12V
• Operating Voltage Range: 10.8V ~ 16V
• Max Current: 10A
• Form Factor: In-Dash, No chassis
• OSD Languages: English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese + 63+ languages
• Illumination Control: Yes
• Anti-shock: Mechanical & Electronic

Display

• Touch Screen: Multi-touch capacitive
• Display Mode: 16:9
• Screen Size: 9 inch
• Resolution: 1280 × 800
• Display Off Function: Yes

CarPlay & Android Auto

• Wireless Support: Yes
• Phone Support: CarPlay (iPhone), Android Auto (Android phones)
• Auto Connect: Automatic after first pairing

Wi-Fi

• Dual Band: 2.4GHz & 5GHz
• Security: WPA/WPA2, AES-CCMP, WPS2.0, WAPI
• Frequencies:
• 2412–2472 MHz (802.11b/g/n HT20)
• 2422–2462 MHz (802.11n HT40)

GPS

• Map Support: Multiple mapping apps
• Frequency: GPS L1: 1559–1610 MHz

Radio

• Radio IC: SI47901
• Tuner: FM/AM with RDS
• Frequency Range: FM 87.5–108 MHz, AM 522–1620 KHz

Amplifier (MOSFET, Class AB – STPA008)

• Output Power:
• 4 × 50 W into 4 Ω (max)
• 4 × 28 W/4 Ω @ 14.4 V, 1 kHz, 10% THD
• 4 × 72 W into 2 Ω (max)
• RCA Pre-outs: 3 pairs, 4V (Front/Rear/Subwoofer)
• EQ Modes: Flat, Powerful, Vocal, Natural, Insane, Unlimited presets
• Customisable Graphic EQ: 13-Band
• D/A Converter: 24-bit
• Crossover Network: LPF/HPF
• Time Alignment: Yes
• Loudness: Yes
• Subwoofer Control: Yes
• LPF & HPF Adjust: Yes
• Hi-Fi Class Distortion: THD as low as 0.01% @ 4W
  Channel Separation (Crosstalk): 75 dB @ 1 kHz, 60 dB @ 10 kHz
• Noise Floor: Output noise (A-weighted) as low as 40 μV
• Frequency Response: Extended up to ~100–300 kHz
• Voltage Gain: 26 dB fixed (±1 dB)

Bluetooth

• Version: BT 5.0 dual connection, A2DP (stereo music)
• Microphones: Built-in & external
• Call Support: Received, Dialled, Missed Calls
• Phonebook Download: Yes
• Frequency Range: 2402–2480 MHz

Rear Camera Input

• AHD: 4 x AHD Inputs (RCA)
• CVBS: 2 x CVBS Inputs (RCA)

SD/USB

• Playback Mode: Auto-play multimedia on connect
• SD Card Slot: No SD Card slot
• USB Ports: 2 (rear)

Interface

• Video Output: 2 channels (CVBS out)
• Audio Input: 2 channels (Aux In)

General

• Operating Temperature: -20℃ ~ +70℃
• Storage Temperature: -30℃ ~ +80℃
• Protections: Short-circuit, over-voltage/load dump (up to 50 V), thermal limit (smooth mute >150℃, shutdown >170℃), DC offset detection, clipping detection

Q: What vehicles will this head unit work with?

A: The Polaris PradoMaxx10 is designed specifically for the 2009–2013 Toyota LandCruiser Prado 150 Series.

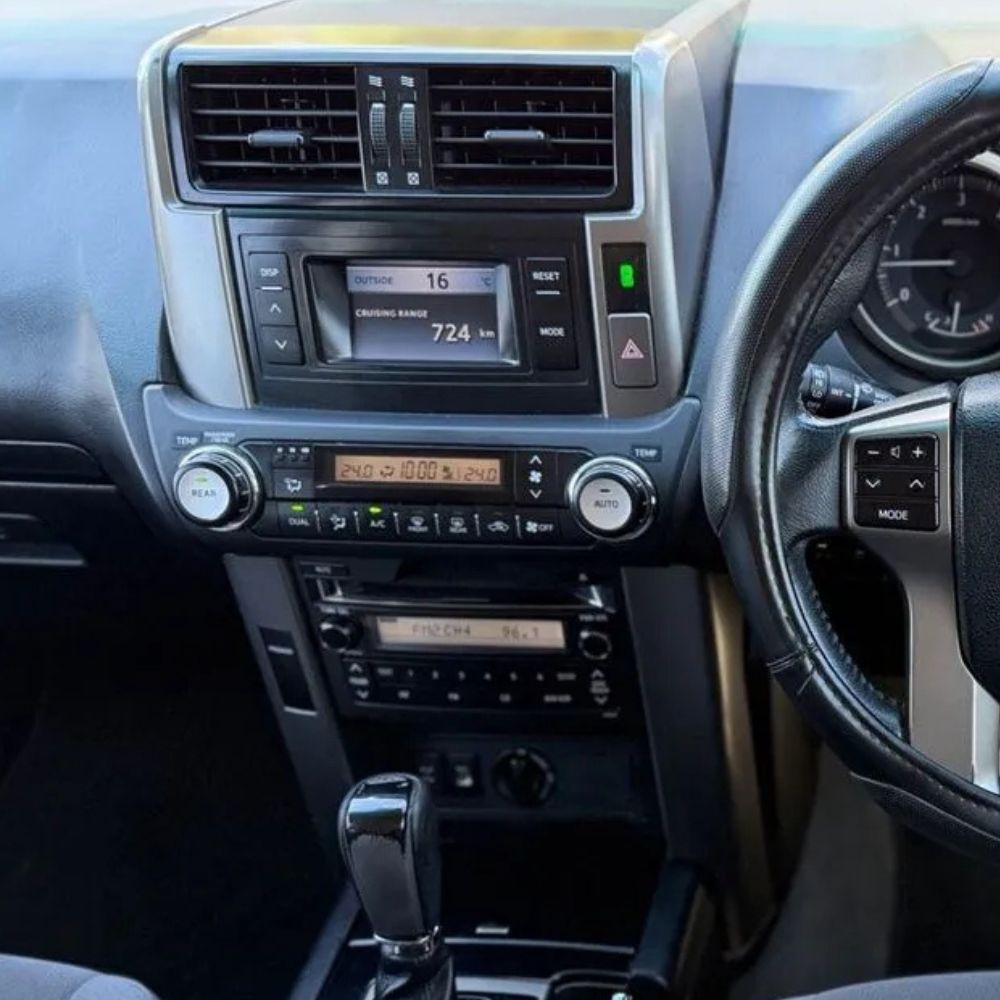

Q: What happens to my factory information screen?

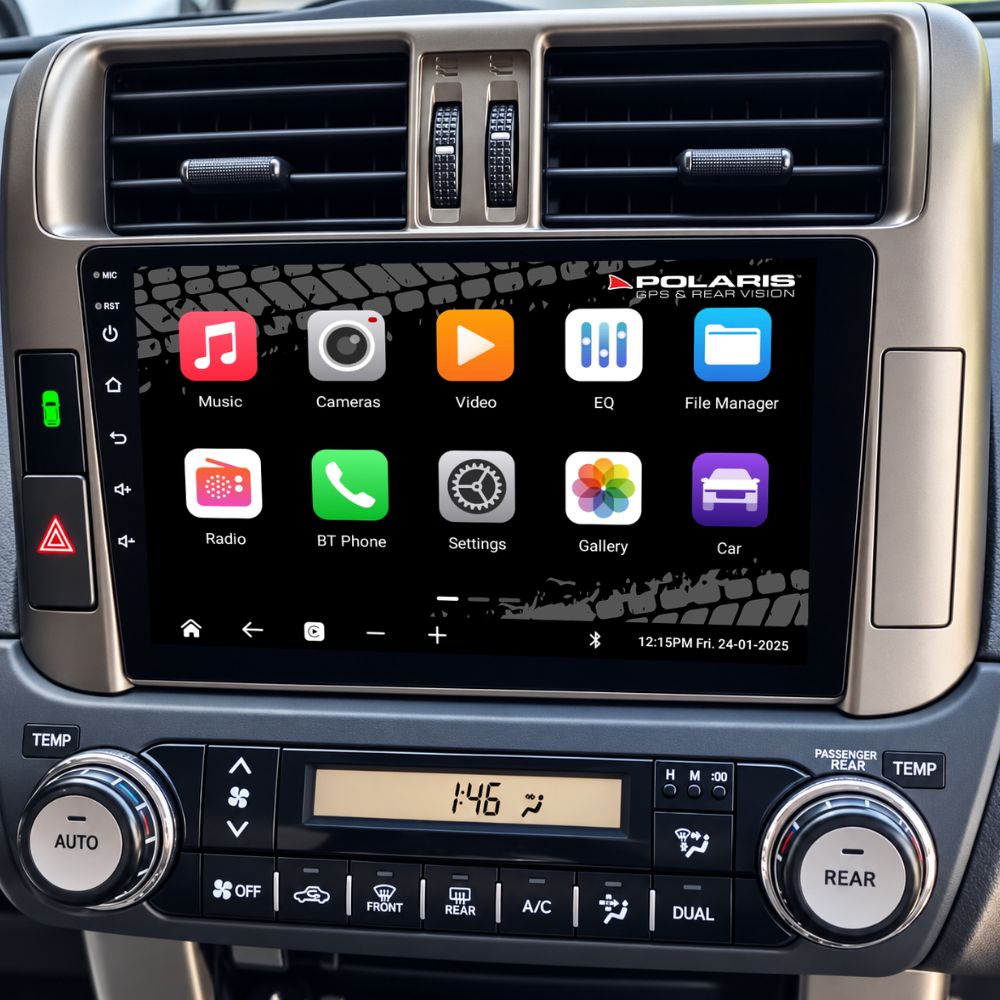

A: The PradoMaxx10 comes with a custom relocating panel that allows your factory information screen to be moved from its original position to where the factory CD player is located. This allows the new 9" touchscreen to take centre stage while retaining your vehicle's original information display.

Q: Will my factory information screen still work after relocation?

A: Yes. Your factory information screen remains functional after relocation, allowing you to continue viewing your vehicle's original information.

Q: Does this unit support wireless CarPlay and Android Auto?

A: Yes. The head unit supports both wireless and wired Apple CarPlay and Android Auto for seamless smartphone connectivity.

Q: Is installation complicated?

A: Installation involves replacing the factory head unit and relocating the original information screen using the supplied panel. The level of difficulty will depend on your experience with vehicle electronics. We recommend following the supplied installation instructions carefully or seeking assistance from a professional installer if required.

Q: Does it come with a reverse camera?

A: No. However, your existing factory reverse camera is retained and will continue to operate with the new head unit.

Q: Can I use multiple cameras with this unit?

A: Yes. The unit supports up to 4 AHD cameras and 2 CVBS camera inputs, allowing you to add additional cameras for improved visibility when reversing, towing or navigating tight spaces.

Q: Will my steering wheel controls still work?

A: Yes. The Polaris PradoMaxx10 retains your factory steering wheel control functionality, allowing you to continue controlling compatible audio functions without taking your hands off the wheel.

Q: What apps come preloaded?

A: The unit comes preloaded with Newtracs and the Torque app. You can also download additional compatible apps through the Google Play Store.

Q: Does the unit receive software updates?

A: Yes. The PradoMaxx10 supports over-the-air (OTA) software updates to help keep your system up to date.

Q: Is the screen high quality?

A: Yes. The PradoMaxx10 features a 9-inch HD touchscreen with a 1280 × 800 resolution and MiraVision technology for sharp, vibrant visuals.

Installation Guide

User Manual

Important installation notes

Camera Wiring Diagram

How to perform OTA Updates

Troubleshooting

How to wirelessly connect Carplay

How to wirelessly connect to Android Auto

How to manually program your steering wheel controls

2-Year Warranty

All Polaris head units come with a 2-year warranty. Customers have up to 30 days from purchase to have their unit installed. The 2-year warranty period begins from the installation date, provided installation occurs within 30 days of purchase.
